CONMED 吸引器具およびチューブ

毎日のニーズに応える高品質なポートフォリオ

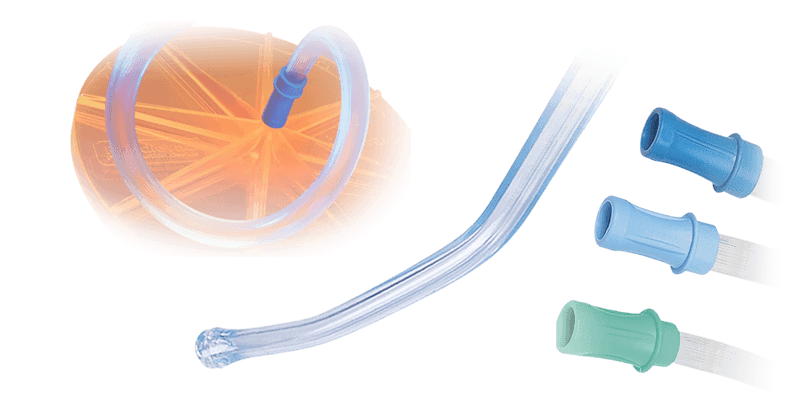

puddlevac-yankauer-and-general-tubing

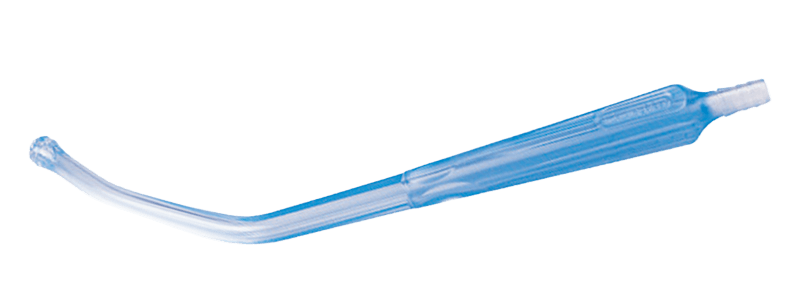

Yankauer

この滅菌済みの使い捨て器具は、大きなルーメンを備え、迅速な吸引と詰まり防止を実現します。手術部位、気道、腹部などの体腔から体液や異物を除去するために使用します。

  • サイドアイにより、組織を挟み込むリスクを低減します
  • 破損防止構造により、開腹手術にも使用可能です
  • 透明性により、体液を明瞭に視認できます
  • コントロールベント付きとなしの2タイプをご用意

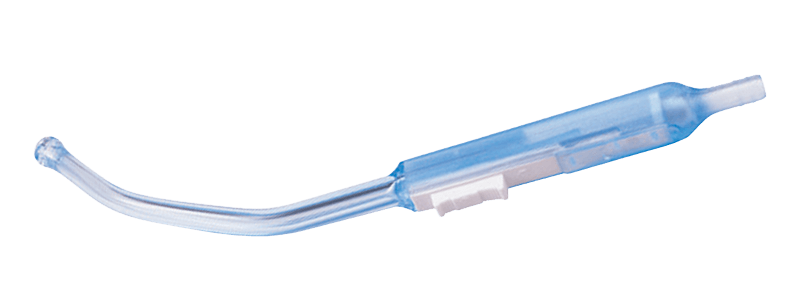

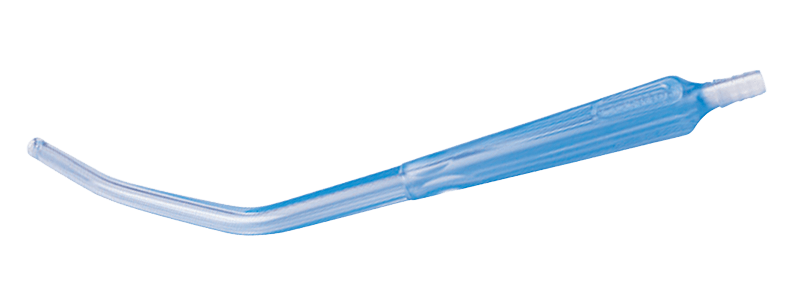

オープンチップ構成により、狭い部位へのアクセスが容易です。バルブチップ構成は、開腹手術中の体液の吸引または排出に使用します。バルブチップのオン/オフスイッチ構成により、吸引音を低減し、クランプの手間を省きます。

Big Yank™吸引システム

チップを取り外すと、大口径11/32インチの吸引システムに素早く切り替えることができ、排出時間を大幅に短縮して患者ケアの質を向上させます。嘔吐物、骨片、凝血塊、セメントなどの固形物や粘性物質を迅速に排出します。ハンドル、取り外し可能なチップ、ユニバーサルキャニスターコネクタ、そしてお好みの長さのチューブが付属しており、すぐに使用できます。

Frazier

これらの使い捨て器具は、剥離防止シャフトと閉塞具を備えており、金属の成形を容易にし、器具の閉塞を除去します。手術部位から異物を除去するために、細かく繊細な吸引が必要な開腹手術に使用します。

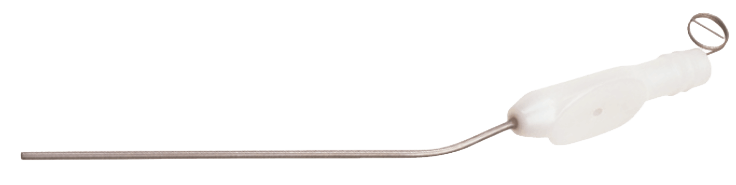

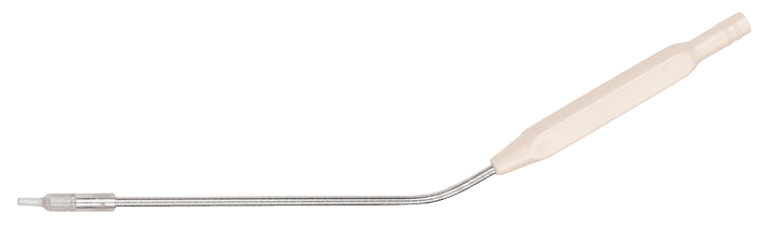

フレイジャーは、確実なグリップを実現するフルサイズのハンドルを備えています。バロンフレイジャーは、マイクロサージェリー(顕微手術)中の繊細なタッチとバランスを保つために、円盤型のハンドルを備えています。ソフトチップフレイジャーには、外傷を軽減し、狭い部位にも安全に届くようにするPVCチップが付属しています。血管損傷が懸念される血管外科手術や脳神経外科手術に最適です。

Frazier-three-configurations

Poole

深部腹部手術および帝王切開時に溜まった血液、体液、および残渣物を排出するために設計された、使い捨ての特殊吸引器です。3つの多用途なポジションを備えており、穏やかなサンプ吸引からピンポイント吸引まで素早く切り替えることができます。

Sigmoid

透明な使い捨て吸引器で、主にS状結腸鏡検査、大腸内視鏡検査、股関節置換術中の大腿骨吸引において、血液、体液、その他の異物を排出するために用いられます。吸引のオン/オフ制御により、組織の吸引を軽減します。

PuddleVac®

PuddleVac は、手術中に体液の溜まりを制御する、簡単に移動できる床吸引装置で、平均 700 ml/分の液体を収集します。

吸引接続チューブ
幅広いサイズと構成をご用意

プレミアムコネクタ

  • 工場出荷時にサイズ別に色分けされたメスコネクタを装着
  • 柔らかくしなやかで、メモリが少ないため使いやすい
  • 高い耐圧性を実現する十分な強度

Frazier

  • Baron Frazierと併用できるよう設計
  • 軽量で柔軟な感触が、外科医の器用さを向上させます
  • オスコネクタで簡単にセットアップと使用が可能
  • 15インチH2Oを超えない低レベルの吸引に推奨

経済性

  • 清潔な非滅菌チューブ
  • 長さ100フィート(30.5m)のロールで提供され、3フィート(0.9m)ごとに一体型のブリスターコネクタが付いています

Documents and Specifications

3/16" Tubing

CAT #
0036470
3/16" (4.80mm) I.D. x 1 1/2' (0.46m) Long Premium Connectored Tubing
Length
1.50ft (0.46m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0048200
3/16" (4.80mm) I.D. x 1 1/2' (0.46m) Long, Clean, Non-Sterile Premium Connectored Tubing
Length
1.50ft (0.46m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0037850
3/16" (4.80mm) I.D. x 3' (0.90m) Long Premium Connectored Tubing
Length
3.00ft (0.90m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0034280
3/16" (4.80mm) I.D. x 6" (1.80m) Long, w/ Male Conector Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0036480
3/16" (4.80mm) I.D. x 6.00' (1.80m) Long Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0036580
3/16" (4.80mm) I.D. x 6" (1.80m) Long, w/ Male and Female Connectors Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0034310
3/16" (4.80mm) I.D. x 10" (3.00m) Long, w/ Male Connector Premium Connectored Tubing
Length
10.00ft (3.00m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0036770
3/16" (4.80mm) I.D. x 10" (3.00m) Long Premium Connectored Tubing
Length
10.00ft (3.00m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 50
CAT #
0034340
3/16" (4.80mm) I.D. x 12' (3.70m) Long, w/ Male Connector Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 20
CAT #
0036560
3/16" (4.80mm) I.D. x 12" (3.70m) Long Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 20
CAT #
0036570
3/16" (4.80mm) I.D. x 20' (6.10m) Long Premium Connectored Tubing
Length
20.00ft (6.10m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 20
CAT #
0048250
3/16" (4.80mm) I.D. x 100' (30.00m) Long Economy Roll, Bubble Tubing (Clean, Non-Sterile)
Length
100.00ft (30.00m)
I D
3/16" (4.80mm)
Purchasing Unit of Measure
Qty 1

1/4" Tubing

CAT #
0034290
1/4" (6.40mm) I.D. x 6' (1.80m) Long, w/ Male Connector Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 50
CAT #
0036280
1/4" (6.40mm) I.D. x 6" (1.80m) Long Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 50
CAT #
0037860
1/4" (6.4mm) I.D.x 6’ (1.8m) Long with Male & Female connectors Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 50
CAT #
0034320
1/4" (6.40mm) I.D. x 10' (3.00m) Long, w/ Male Connector Premium Connectored Tubing
Length
10.00ft (3.00m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 50
CAT #
0036290
1/4" (6.40mm) I.D. x 10' (3.00m) Long Premium Connectored Tubing
Length
10.00ft (3.00m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 50
CAT #
0034350
1/4" (6.40mm) I.D. x 12' (3.70m) Long, w/ Male Connector Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 20
CAT #
0036550
1/4" (6.40mm) I.D. x 12' (3.70m) Long Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 20
CAT #
0036540
1/4" (6.40mm) I.D. x 20' (6.10m) Long Premium Connectored Tubing
Length
20.00ft (6.10m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 20
CAT #
0036530
1/4" (6.40mm) I.D. x 25' (7.60m) Long Premium Connectored Tubing
Length
25.00ft (7.60m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 20
CAT #
0048260
1/4" (6.40mm) I.D. x 100' (30.00mm) Economy Roll, Bubble Tubing (Clean, Non-Sterile)
Length
100.00ft (30.00m)
I D
1/4" (6.40mm)
Purchasing Unit of Measure
Qty 1

9/32" Tubing

CAT #
0034300
9/32" (7.10mm) I.D. x 6' (1.80m) Long, w/ Male Connector Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 50
CAT #
0037040
9/32" (7.10mm) I.D. x 6' (1.80m) Long Premium Connectored Tubing
Length
6.00ft (1.80m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 50
CAT #
0037050
9/32" (7.10mm) I.D. x 9' (2.70m) Long Premium Connectored Tubing
Length
9.00ft (2.70m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 20
CAT #
0034360
9/32" (7.10mm) I.D. x 12' (3.70m) Long, w/ Male Connector Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 20
CAT #
0037060
9/32" (7.10mm) I.D. x 12' (3.70m) Long Premium Connectored Tubing
Length
12.00ft (3.70m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 20
CAT #
0037070
9/32" (7.10mm) I.D. x 20' (6.10m) Long Premium Connectored Tubing
Length
20.00ft (6.10m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 20
CAT #
0048270
9/32" (7.10mm) I.D. x 100' (30.00m) Economy Roll, Bubble Tubing (Clean, Non-Sterile)
Length
100.00ft (30.00m)
I D
9/32" (7.10mm)
Purchasing Unit of Measure
Qty 1

Accessories

CAT #
0031000
Branon Frazier Suction Connecting Tubing
Length
2.00ft (0.64m)
I D
5.00mm
Purchasing Unit of Measure
Qty 50
Packaged
Sterile

Instruments

CAT #
0034470
Cardiac Yankauer Suction Instrument
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0034870
Yankauer Suction Instrument, Bulb Tip without Control Vent
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0034880
Yankauer Suction Instrument, Bulb Tip with Control Vent
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0034910
Yankauer Suction Instrument, Bulb Tip without Control Vent and 6.00' Tube pre-attached
Tube
6.00ft (1.80m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0034920
Yankauer Suction Instrument, Bulb Tip with Control Vent and 6.00' (1.80m) Tube pre-attached
Tube
6.00ft (1.80m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0034950
Yankauer Suction Instrument Large Bore, Bulb Tip, without Control Vent and 11.00/32.00" I.D. X 10.00’ Tube
I.D.
11.00/32.00in (9.00mm)
Tube
10.00ft (3.00m)
Purchasing Unit of Measure
Qty 10
CAT #
0034960
Yankauer Suction Instrument, Bulb Tip with Control Vent and 10.00' (3.00m) Tube pre-attached
Tube
10.00ft (3.00m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0034970
Yankauer Suction Instrument, Open Tip without Control Vent
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0034980
Yankauer Suction Instrument, Open Tip with Control Vent
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0038730
Yankauer Suction Instrument, Bulb Tip with On/Off Control Switch
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0035040
Poole Suction Instrument
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0035050
Poole Suction Instrument with 6.00' Tube pre-attached
Tube
6.00ft (1.80m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0035070
Poole Suction Instrument with 10.00' Tube pre-attached
Tube
10.00ft (3.00m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0031030
Baron Frazier Suction Instrument, 3 French with Vent
French
3
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0031050
Baron Frazier Suction Instrument, 5 French with Vent
French
5
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0031070
Baron Frazier Suction Instrument, 7 French with Vent
French
7
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0031100
Soft Tip Frazier Suction Instrument, 10 French with Vent
French
10
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
CAT #
0033080
Baron Frazier Suction Instrument, 8 French with Vent
French
8
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0033100
Baron Frazier Suction Instrument, 10 French with Vent
French
10
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0033120
Baron Frazier Suction Instrument, 12 French with Vent
French
12
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0033180
Baron Frazier Suction Instrument, 18 French
French
18
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0033040
Sigmoid Suction Instrument
French
18
Length
30.00cm
Purchasing Unit of Measure
Qty 50
Packaged
Sterile
CAT #
0033050
Sigmoid Suction Instrument with 6.00ft Pre-Attached Tubing
French
18
Length
30.00cm
Tube
6.00ft (1.80m)
Purchasing Unit of Measure
Qty 20
Packaged
Sterile
