CoLink NeoFuse^®

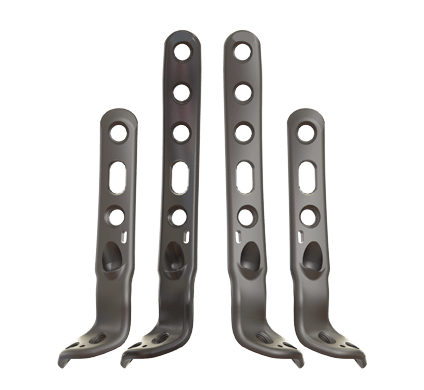

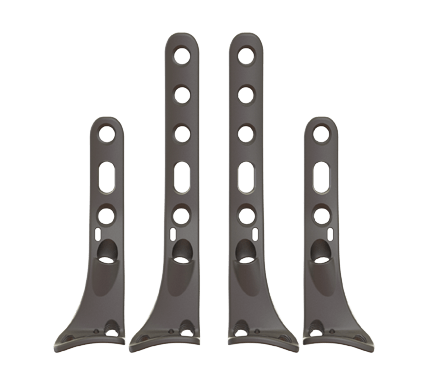

The CoLink NeoFuse^® Ankle Fusion Plating System includes side-specific Anterior and Anterolateral low-profile plates, in 3-Hole and 5-Hole varieties, for the anterior fixation of ankle arthrodesis and fractures, including the distal tibia and talus.

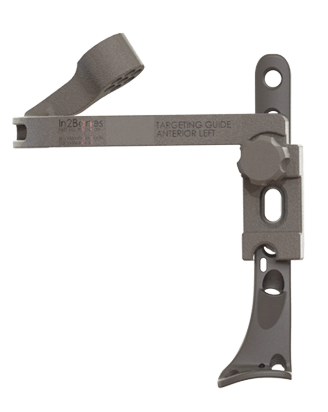

Side-specific Targeting Guides aid in medial-lateral compression screw placement.

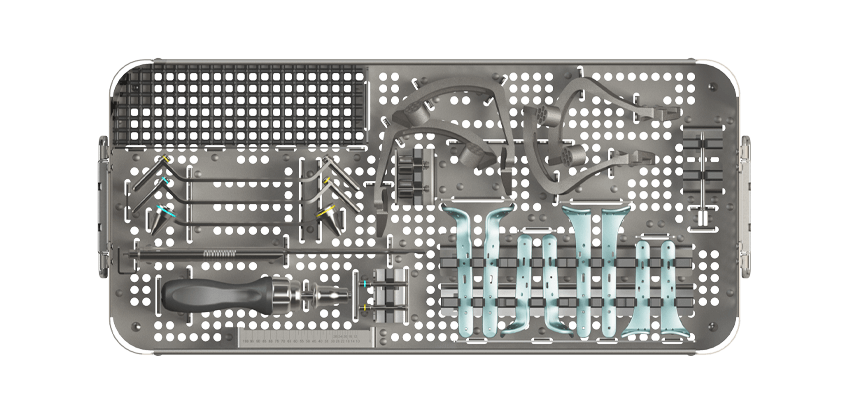

All implants are provided sterile packaged. The system uses a set of sterile and reusable instruments, including trial plates.

The CoLink NeoFuse^® MIS Plating System is a line extension to the current CoLink plating system offerings.

The CoLink NeoFuse^® MIS Plating System features two symmetrical MIS Plates.

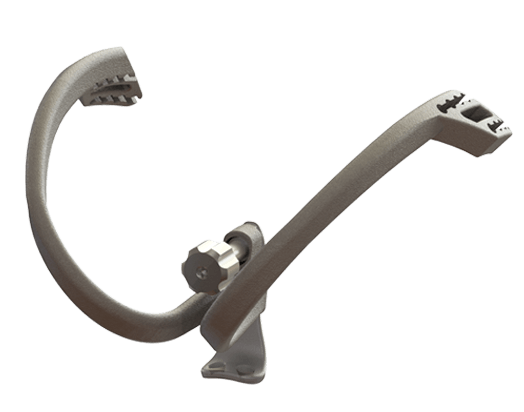

A symmetrical Targeting Guide is provided for placement of posterior transverse compression and neutralization screws outside of the plate for added compression and stability to the joint.

All implants are provided sterile packaged. The system uses a set of sterile and reusable instruments, including trial plates.

All plate configurations associated with the CoLink NeoFuse^® family of plates feature dedicated Targeting Guides for the placement of CoLag^® 6.7mm Screws outside of the plate construct.

Side-specific Anterior and Anterolateral Targeting Guides allow for the placement of a medial-lateral CoLag^® 6.7mm Compression Screw across the joint.

The symmetrical MIS Plate Targeting Guide is provided for placement of posterior transverse CoLag^® 6.7mm compression and neutralization screws outside of the plate for added compression and stability to the joint.

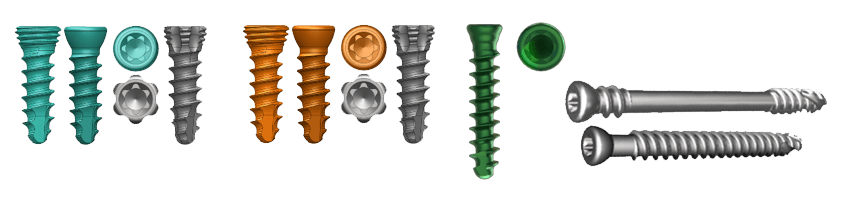

The CoLink NeoFuse^® family of plates feature compatibility with 3.5mm and 4.5mm Locking, Non-Locking, and Variable Angle Screws, with 5.0mm Cancellous Screws available for use in place of 4.5mm Non-Locking Screws where needed (based on surgeon expertise).

CoLag^® 6.7mm Compression and Fully Threaded Screws are used for joint compression and stabilization outside of the plate construct.
