Click-Tip™ and FlexiTip™

Injection Needles

Sclerotherapy redefined

clicktip-and-flexitip

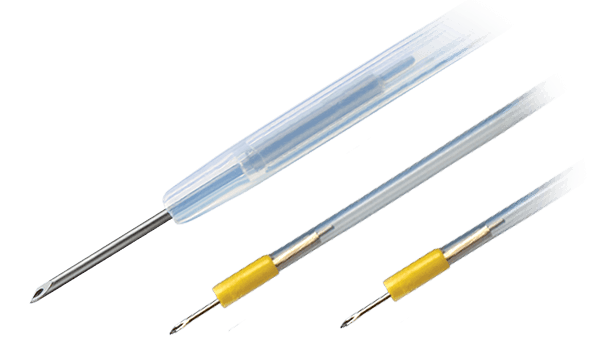

The Click-Tip™ Injection Needle family includes 19, 22, and 25 gauge needles to accommodate a variety of clinical situations. The ergonomic, nurse-designed handle is easy to use for maximum comfort. A 15-degree beveled stainless steel needle provides maximum piercing capability for easy insertion. Top down injection allows for easy injection of solutions, while the parallel port enhances handling and injection ergonomics.

The needle's safety tab decreases the risk of scope damage and limits risk of sharps injury, while the locking feature helps minimize needle bounce. A color indication on the unlock button clearly shows how to unlock the needle in a low light setting.

The ultra-flexible tip of FlexiTip™ Disposable Sclerotherapy Needle is easily passed over the deflected elevator of a duodenoscope. Its optic yellow tip is highly visible in a bloody field. A retractable, lockable needle minimizes needle bounce and optimizes control during procedures. The ergonomic handle allows convenient introduction of injection media.

Documents and Specifications

Needles

CAT #
02-23-230
Click-Tip™ Injection Needle 4.00mm X 2.30mm X 230.00cm
Needle Length
4.00mm
Needle Gauge
19
Sheath Outer Diameter
2.30mm
Sheath Length
230cm
Purchasing Unit of Measure
Qty 10
CAT #
01-19-230
Click-Tip™ Injection Needle 4.00mm X 1.90mm X 230.00cm
Needle Length
4mm
Needle Gauge
22
Sheath Outer Diameter
1.9mm
Sheath Length
230cm
Purchasing Unit of Measure
Qty 10
CAT #
03-19-230
Click-Tip™ Injection Needle 6.00mm X 1.90mm X 230.00cm
Needle Length
6mm
Needle Gauge
22
Sheath Outer Diameter
1.90mm
Sheath Length
230cm
Purchasing Unit of Measure
Qty 10
CAT #
05-19-230
Click-Tip™ Injection Needle 4.00mm X 1.90mm X 230.00cm
Needle Length
4mm
Needle Gauge
25
Sheath Outer Diameter
1.90mm
Sheath Length
230cm
Purchasing Unit of Measure
Qty10
CAT #
06-19-230
Click-Tip™ Injection Needle 6.00mm X 1.90mm X 230.00cm
Needle Length
6mm
Needle Gauge
25
Sheath Outer Diameter
1.90mm
Sheath Length
230cm
Purchasing Unit of Measure
Qty 10
CAT #
000138
FlexiTip™ Sclerotherapy Needle 5.00 X 230.00mm
Needle Length
5.00mm
Needle Gauge
25
Sheath Outter Diameter
2.30mm
Sheath Length
230.00cm
Purchasing Unit of Measure
Qty 5
CAT #
000198
FlexiTip™ Sclerotherapy Needle 4.00mm X 160.00cm
Needle Length
4.00mm
Needle Gauge
25
Sheath Outer Diameter
2.30mm
Sheath Length
160.00cm
Purchasing Unit of Measure
Qty 5
CAT #
000199
FlexiTip™ Sclerotherapy Needle 5.00mm X 160.00cm
Needle Length
5.00mm
Needle Gauge
25
Sheath Outer Diameter
2.30mm
Sheath Length
160.00cm
Purchasing Unit of Measure
Qty 5
CAT #
000215
FlexiTip™ Sclerotherapy Needle 4.00mm X 160.00cm, Yellow Tip
Needle Length
4.00mm
Needle Gauge
25
Sheath Outer Diameter
2.30mm
Sheath Length
160.00cm
Purchasing Unit of Measure
Qty 5
CAT #
000216
FlexiTip™ Sclerotherapy Needle 5.00mm X 160.00cm, Yellow Tip
Needle Length
5.00mm
Needle Gauge
25
Sheath Outer Diameter
2.30mm
Sheath Length
160.00cm
Purchasing Unit of Measure
Qty 5
CAT #
000218
FlexiTip™ Sclerotherapy Needle 5.00mm X 230.00cm, Yellow Tip
Needle Length
5.00mm
Needle Gauge
25
Sheath Outer Diameter
2.30mm
Sheath Length
230.00cm
Purchasing Unit of Measure
Qty 5

Experience the Difference
