Arthroscopic Fluid Management

Systems

Focus on the patient, not the pump

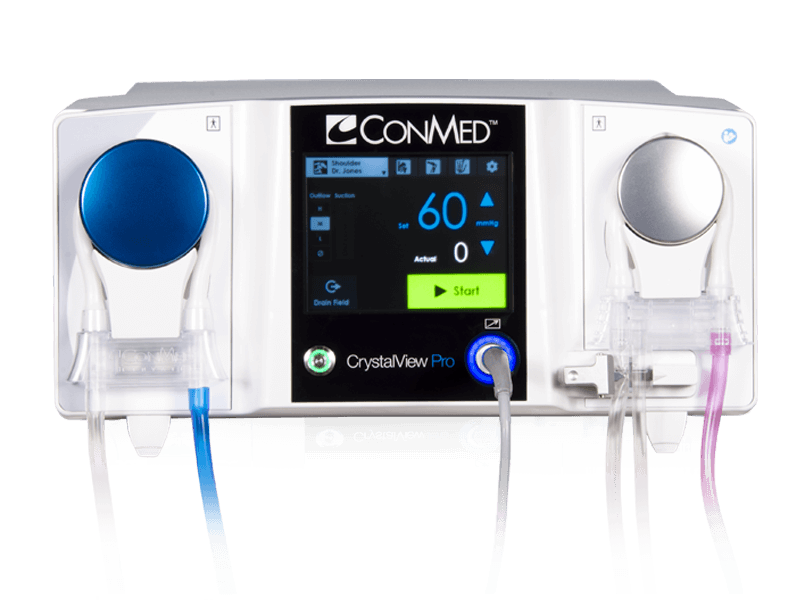

crystalview-pro-pump-face

CrystalView™ Pro is Flush with Benefits:

Focus on the Patient, Not the Pump
The CrystalView™ Pro Fluid Management System combines high performance inflow and outflow for optimal distension and clear visualization.

Simple and Intuitive
Customizable surgeon presets, optimal settings for each procedure, and easy to follow on-screen instructions help simplify your day in the OR.

Compatible with Multiple Tubing Options
Easily work with inflow, outflow, day use, and laparoscopic tubing.

Looking for TIPS?

The 24k® Pump delivers high performance inflow/outflow control capabilities with True Intra-Articular Pressure Sensing (TIPS).

24k pump straight on shot showing screen, buttons and controls

Looking for Inflow Only?

The 10k® Pump is a simple, user-friendly inflow-only pump with flow rates up to 2 liters per minute.

10k pump angled right showing screen, buttons and controls

All Your Tubing Needs:

Inflow Tubing

10k100 - Inflow Tubing

10k150 - Inflow Tubing with Suction

Outflow Tubing

24k100 - Outflow Tubing with Waste and Suction Lines

Day Use Tubing

Main pump tubing stays in place throughout the surgical day while the patient portion of the tubing is replaced, saving fluid, tubing, and setup time.

10k600 - Day Use Pump Tubing

10k605 - Single Use Patient Tubing

Gravity Tubing

Sets are compatible with existing scope/inflow sheaths or cannulas and have extra large tubing diameters to maintain high flow rates under the most demanding conditions.

C7110 - Two Spike

C7111 - Four Spike

Laparoscopic Tubing

10k500 - Tube Set without Cannula

10k505 - Tube Set with Fixed Cannula

PuddleVac® Floor Suction Device

A simple solution to a problem often encountered during procedures utilizing fluid distension media - pools of fluid on the operating room floor. Suction should be set at a standard hospital suction level of approximately 300 mmHg. The PuddleVac® is easily moved wherever it is needed and can collect an average of 700ml of fluid per minute.

Documents and Specifications

Capital Unit

CAT #
CV4000
CrystalView™ Pro Irrigation Console
Quantity
1 each
CAT#
24K
24k® PUMP
Max Pressure
150 mmHg
Min Pressure
10 mmHg
Weight
10.3 lbs
Height
7.1 in
Width
14 in
Depth
15.9 in
CAT#
10K
10k® Pump
Maximum set pressure
150 mmHg
Maximum flow rating
2000ml/min
Weight
7 lbs
Height
6.5"(16.5 cm)
Width
7.75"(19.7 cm)
Depth
8"(20.3 cm)

Accessories

CAT #
CV4040
CrystalView™ Pro Remote
Quantity
1 each
CAT #
W2000C
Combination Resection & Fluid Wireless Footswitch Control
CAT #
C8115
24k® Autoclavable Remote Control
CAT #
24K900
24k Shaver Sensor
CAT #
D4024
24k Interface cable, 2 meters
Length
2m
CAT #
C7115
10k Autoclavable Remote Control
Provides
Flow Control, Pressure Control, Tamponade Assist

Tubing

CAT #
10K100
Inflow Arthroscopy Tube Set
Quantity
10 per box
CAT #
10K100D
Inflow Tubing with Colder Fitting for Dyon-ics Scope Sheaths
Quantity
10 per box
CAT #
10K150
10K Arthroscopy Tube Set with Suction Line
Quantity
10 per box
CAT #
10K500
10k Laparoscopic Tube Set with-out Cannula
Packaged
Single, Sterile
Purchasing Unit of Measure
10
CAT #
10K505
10k Laparoscopic Tube Set with Fixed Cannula
Packaged
Single, Sterile
Purchasing Unit of Measure
10
CAT #
10K600
10k Arthroscopic Day-Use Pump Inflow Tube Set
Packaged
Single, Sterile
Purchasing Unit of Measure
4
CAT #
10K605
Single-Use Patient Tubing
Quantity
12 per box
CAT #
24K100
Outflow/Shaver Suction/Waste Tubing
Quantity
10 per box
CAT #
24KTIPS
24k Tube Set
Packaged
Single, Sterile
Purchasing Unit of Measure
4
CAT #
C7110
Gravity Irrigation Disposable Tubing Set,Two-Spike
Packaged
Single, Sterile
Purchasing Unit of Measure
8
CAT #
C7111
Gravity Irrigation Disposable Tubing Set,Four-Spike
Packaged
Single, Sterile
Purchasing Unit of Measure
8

Instruments

CAT #
9321
PuddleVac®, Floor Suction Device
Packaged
Single, Sterile
Purchasing Unit of Measure
30
