Arthroscopic Resection

Systems, Blades, and Burrs

A comprehensive solution to meet your clinical needs

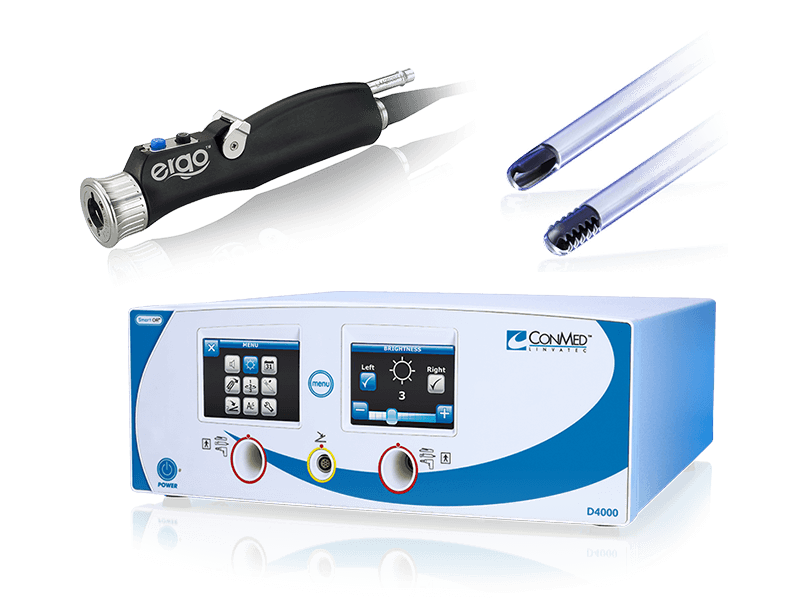

resection-console-handpiece-and-blades
CONMED ergonomic handpieces and versatile resection systems power a full line of blades and burrs. Reduce metal particulate1 with Stealth™ DLC blades, and enjoy numerous advantages from our dual-purpose and specialty blade offerings.

D4000™ Arthroscopic Resection System

Our D4000™ / D4000A™ systems are loaded with intuitive features that deliver new levels of simplicity, versatility, and performance to the operating room.

Enjoy these features:

An easy-to-use interface

Two plug and play handpiece ports provide continuous uninterrupted power

Versatility to support handpieces, 5 languages, and customizable user-profiles

Built-in wireless connectivity to support multiple wireless foot controllers

Ergo™ Shaver Handpiece

Ergo™ features an ergonomically engineered handle that provides an evenly distributed 19.3 oz weight distribution for optimal balance and control when held traditionally (knee), dagger style (shoulder and hip), or pencil grip. This eliminates the fatigue associated with traditional barrel shaped styles.

CONMED blades and burs are best-in-class with Ergo's 35 in-oz of torque and 12,000 RPM maximum speed. Ergo™ also allows bi-directional blade insertion.

Stealth™ DLC Blades

With Diamond-Like Carbon (DLC) coating on the distal cutting tip, experience ultra-hard, ultra-low friction for reduced metal particulate.1

Learn more about preventing the dangers of metal particulate in your procedures.

1 TR17-00073, TR17-00165, TR17-00073-1.

close up of two different stealth carbon coated blade heads with and without spikes

Ultra Series™ Dual-Purpose Blades

A 2-in-1 offering for tissue and bone that achieves maximum performance and aggressiveness. When powered by the D4000™ console, a "Turbo" features allows you to toggle between oscillate and forward modes.

close up of one ultra series dual purpose blade tip

Sterling® Blades and Burs

This series is created with the patented XtraSharp™ manufacturing technique, which uses Electro-Chemical Grinding (ECG) instead of Electrical Discharge Machining (EDM) to achieve better performance. A sharper cutting edge equals cleaner cuts, less tissue tearing, and fewer semi-attached pieces for less clogging.

three sterling blades and burs showing their different tips

Specialty Blades:

key feature icon

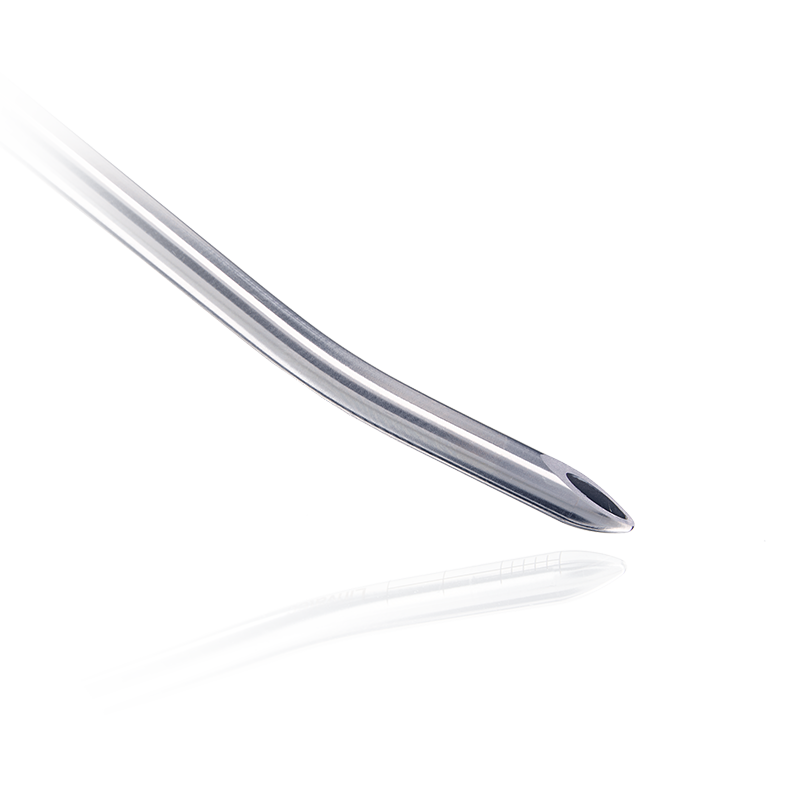

Lanza® Blades
A dual inner cutting window and tapered design provide easy access to tight spaces and difficult-to-reach anatomy.

key feature icon

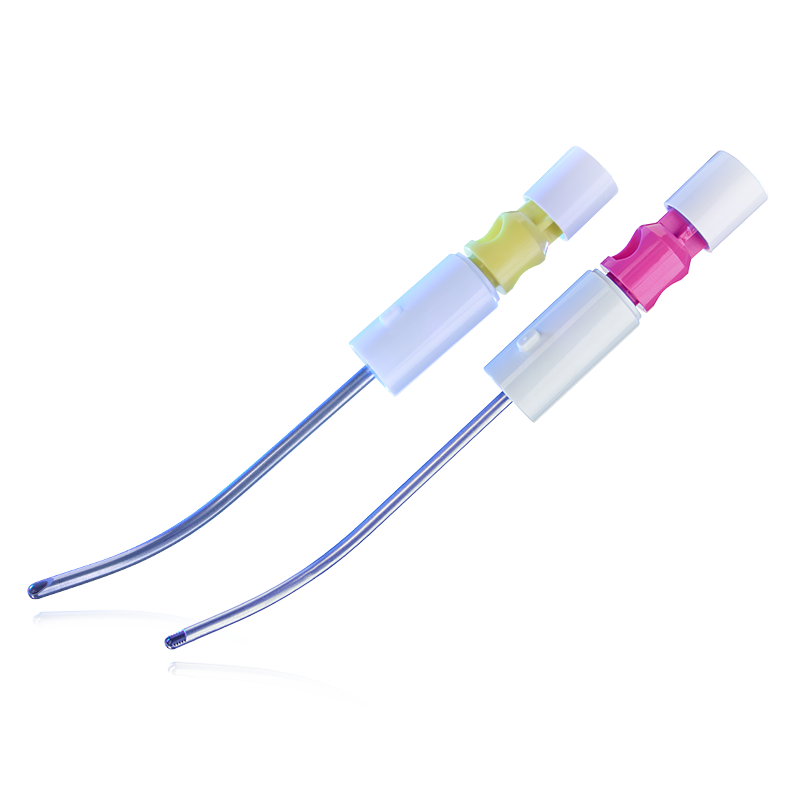

Mimix™ Small Joint Blades/Burs
Designed to mimic small joint anatomy, these blades feature a curvature and working length tailored to fast, precise access in tight anatomical spaces.

key feature icon

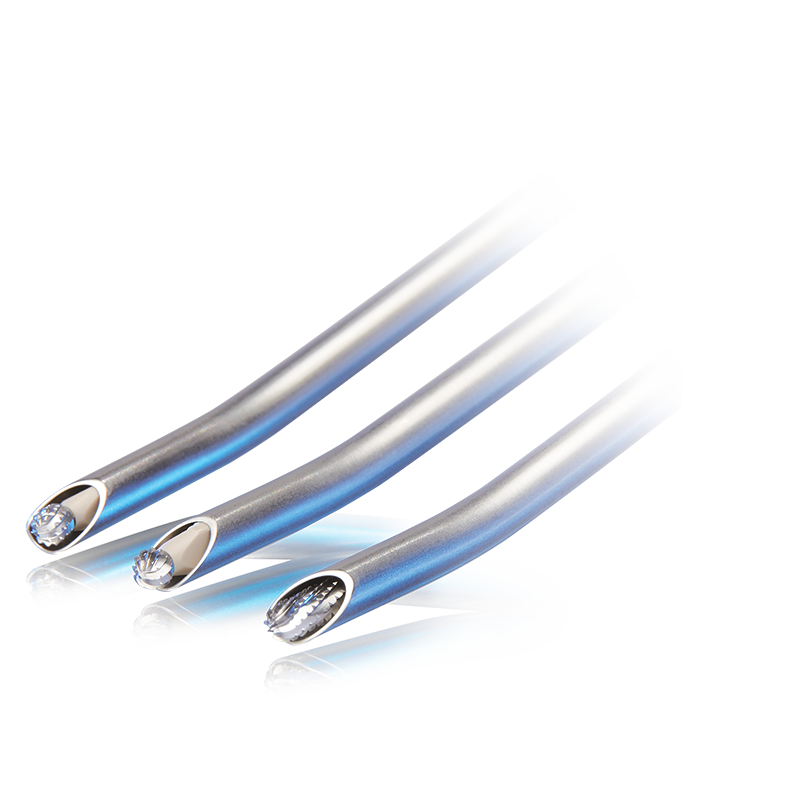

Signature Series™ Blades/Burs
Designed for use in the hip joint to enable more effective reshaping of the hip anatomy.

Documents and Specifications

Capital Unit

CAT #
D4000A
D4000A Arthro Power Console with Irrigation
Height
5.6"(14.2cm)
Width
14"(35.6cm)
Depth
16.5"(41.9cm)
D4000
D4000
D4000 Arthro Power Console
Height
5.6"(14.2cm)
Width
14"(35.6cm)
Depth
16.5"(41.9cm)

Accessories

CAT #
D4001
D4001, Procedure Cart
CAT #
D9900
Thorne Chuck 5/32”
CAT #
W2000
Resection Wireless Foot Control
CAT #
H9002
Bur Sheath, 4.0mm or 4.5mm to make unhooded bur
Purchasing Unit of Measure
6
CAT #
H9000
Bur Sheath, 5.5mm or 6.0mm to make unhooded bur
Purchasing Unit of Measure
6

Handpieces

CAT #
D4240
Ergo™ Shaver Handpiece, Two-Button
CAT #
D9924
Two-Button Advantage® Turbo Shaver
Forward Speed
500-12,000rpm
Oscillate Speed
500-2,500cpm, Single and Multi Turn Oscillate
Weight
17.8oz (505g)

FRR/UltraFRR

CAT #
S9246A
Full Radius Resector® (FRR) Stealth™
Diameter
5.5mm
Working Length
13cm
CAT #
S9247A
FRR® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SC9248
Full Radius Resector® (FRR) Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
SDPS-C010
UltraFRR™ Stealth™, 4.2mm
Diameter
4.2mm
Working Length
13cm
CAT #
SDPS-C011
UltraFRR® Stealth™
Diameter
5.5mm
Working Length
13cm

Gator/UltraGator

CAT #
S9260A
Gator® Stealth™
Diameter
5.5mm
Working Length
13cm
CAT #
S9263A
Gator® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SC9264
Gator® Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
SDPS-C002
UltraGator® Stealth™, 4.2mm
Diameter
4.2mm
Working length
13cm
CAT #
SDPS-C003
UltraGator® Stealth™
Diameter
5.5mm
Working Length
13cm

Great White®

CAT #
S9299A
Great White® Stealth™, 4.2mm
Diameter
4.2mm
Working Length
13cm
CAT #
S9399A
Great White® Stealth™
Diameter
3.5mm
Working Length
13cm
CAT #
S9599A
Great White® Stealth™
Diameter
5.5mm
Working Length
13cm

3.5mm Blades

CAT #
DPS-C001
Ultra Dual Purpose Blades - 3.5mm UltraGator
CAT #
DPS-C009
Ultra Dual Purpose Blades - 3.5mm UltraFRR
CAT #
DPS-C004
Ultra Dual Purpose Blades - 3.5mm UltraTiger
CAT #
35ULT-ST-ZZ
Ultracut®, 3.5mm, Shaver Blade
Diameter
3.5mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
9399A
Great White
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9264
Gator
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9248
Full-Radius Resector (FRR)
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9240
Tiger
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9253
Cuda
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9760
Meniscus Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9290
Dragon End Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9283
End Cutter
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6

4.2mm Blades

CAT #
DPS-C002
Ultra Dual Purpose Blades - 4.2mm UltraGator
CAT #
DPS-C005
Ultra Dual Purpose Blades - 4.2mm UltraTiger
CAT #
DPS-C010
Ultra Dual Purpose Blades - 4.2mm UltraFRR
CAT #
C9405A
Ultracut®, 4.2mm, Shaver Blade
Diameter
4.2mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
42ULT-LB-ST
Ultracut®, Liberator Plus™, 4.2mm, Shaver Blade
CAT #
42ULT-ZZ-MT
Ultracut®, 4.2mm, Pre-Bent, Shaver Blade
CAT #
C9298A
Sterling Mako, 4.2mm, Shaver Blade
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9299A
Great White
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9242
Tiger
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9254
Cuda
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9761A
Meniscus Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9291
Dragon End Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9284
End Cutter
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9274
Slotted Whisker
Diameter
4.2mm
Length
13cm
Purchasing Unit of Measure
6

5.5mm Blades

CAT #
DPS-C003
Ultra Dual Purpose Blades - 5.5mm UltraGator
CAT #
DPS-C011
Ultra Dual Purpose Blades - 5.5mm UltraFRR
CAT #
C9415
Ultracut®, 5.5mm, Shaver Blade
Diameter
5.5mm
Working Length
13.0cm
Packaged
Single, Sterile
Purchasing Unit of Measure
6
CAT #
9298A
Sterling Mako, 5.5mm, Shaver Blade
Diameter
4.2mm
Length
13m
Purchasing Unit of Measure
6
CAT #
9599A
Great White
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9260A
Gator
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
9246A
ll-Radius Resector (FRR)
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9255
Cuda
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9762
Meniscus Cutter
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9292
Dragon End Cutter
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6

Burs

CAT #
H9133
Sterling Lightning, 4.5mm, Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
LE-40OHP
Mimix™ 4.0mm Oval Bur
CAT #
LE-40SHP
Mimix™ 4.0mm Spherical Bur

4.8mm Blades

CAT #
9297A
Great White
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9262
Gator
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
C9245
Full-Radius Resector (FRR)
Diameter
4.8mm
Length
13cm
Purchasing Unit of Measure
6

3.5mm and 4.0mm Burs

CAT #
H9110
Spherical Bur
Diameter
3.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101
Oval Bur
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101RH
Oval Bur, Reduced Hood
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9101LH
Oval Bur, Southpaw
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9121
Tapered Bur
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9121RH
Tapered Bur, Reduced Hood
Diameter
4.0mm
Length
13cm
Purchasing Unit of Measure
6

4.5mm and 5.0mm Burs

CAT #
H9111
Spherical Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9103RH
Oval Bur, Reduced Hood
Diameter
5.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9118
Cyclone Bur
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9131
Vortex Router
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9134
Vortex Router, Unhooded
Diameter
4.5mm
Length
13cm
Purchasing Unit of Measure
6

5.5mm and 6.0mm Burs

CAT #
H9112
Spherical Bur
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9112RH
Spherical Bur, Reduced Hood
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9102
Oval Bur
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9102LH
Oval Bur, Southpaw
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9122
Tapered Bur
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9119
Cyclone Bur
Diameter
5.5mm
Length
13cm
Purchasing Unit of Measure
6
CAT #
H9132
Vortex Router, 5 flutes
Diameter
6.0mm
Length
13cm
Purchasing Unit of Measure
6

Blades

CAT #
9391A
Lanza™
Size
4.2mm
Length
13cm
Max F R Speed
6,000 RPM
Max Oscillate Speed
2,500 RPM
Tip Design
Tapered
Straight Pre bent
Straight
Cutting Profile
Smooth outer, smooth/dual inner
CAT #
9391M
Pre-bent Lanza™ ,13cm
CAT #
HPS-CB09
Pre-bent Lanza™ , 19cm*
CAT #
LE-29FRP
Mimix™ 2.9mm 35° FRR Stealth™
CAT #
LE-35FRP
Mimix™ 3.5mm 35° FRR Stealth™
CAT #
LE-29CUP
Mimix™ 2.9mm 35° Cuda Stealth™
CAT #
LE-35CUP
Mimix™ 3.5mm 35° FRR Stealth™
CAT #
HPS-CB01
HPS Great White®, Prebent Convex, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB02
4.20mm HPS Great White®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB03
4.20mm HPS FRR, Prebent Convex
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB04
HPS FRR, Prebent Concave, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB05
HPS Gator®, Prebent Convex, 4.2mm x 19.0cm
Diameter
4.2mm
Working Length
19.0cm
CAT #
HPS-CB06
4.20mm HPS Gator®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB07
4.20mm HPS Ultracut®, Prebent Convex
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-CB08
4.20mm HPS Ultracut®, Prebent Concave
Diameter
4.20mm
Working Length
19.00cm

4.5mm Burs

CAT #
HPS-HB01
4.50mm EL Hip Prebent Spherical Bur
Diameter
4.50mm
Working Length
19.00cm
CAT #
HPS-HB02
EL Hip Prebent Polishing Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H001
HPS Spherical Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H004
HPS Polishing Bur, 4.5mm x 19.0cm
Diameter
4.5mm
Working Length
19.0cm
CAT #
HPS-H005
4.50mm HPS Vortex® Bur
Diameter
4.50mm
Working Length
19.00cm
CAT #
EL9111RH
4.50mm, Sterling, Bur, Spherical, 20° Reduced Hood

4.0mm Burs

CAT #
HPS-HB03
4.00mm EL Hip Prebent Oval Bur
Diameter
4.00mm
Working Length
19.00cm
CAT #
HPS-H002
HPS Oval Bur, 4.0mm x 19.0cm
Diameter
4.0mm
Working Length
19.0cm
CAT #
HPS-H003
HPS Pear Bur, 4.0mm x 19.0cm
Diameter
4.0mm
Working Length
19.0cm
CAT #
EL9101
4.00mm, Sterling, Bur, Oval

5.5mm Burs

CAT #
HPS-HB11
5.50mm EL Hip Prebent Spherical Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-HB12
5.50mm EL Hip Prebent Polishing Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-H011
5.50mm HPS Spherical Bur
Diameter
5.50mm
Working Length
19.00cm
CAT #
HPS-H014
HPS Polishing Bur, 5.5mm x 19.0cm
Diameter
5.5mm
Working Length
19.0cm
CAT #
55SPH-EL-RH
5.50mm, Sterling, Bur, Spherical, 20° Reduced Hood
CAT #
EL9260A
5.50mm, Sterling, Shaver, Gator

6.0mm Burs

CAT #
HPS-HB13
EL Hip Prebent Oval Bur, 6.0mm x 19.0cm
Diameter
6.0mm
Working Length
19.0cm
CAT #
HPS-H012
6.00mm HPS Oval Bur
Diameter
6.00mm
Working Length
19.00cm
CAT #
HPS-H013
HPS Pear Bur, 6.0mm x 19.0cm
Diameter
6.0mm
Working Length
19.0cm

4.2mm Burs

CAT #
HPS-C001
4.20mm HPS Great White®, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-C003
4.20mm HPS FRR, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
HPS-C004
4.20mm HPS Ultracut®, Sterling®
Diameter
4.20mm
Working Length
19.00cm
CAT #
EL9247D
4.20mm, Sterling, Shaver, Full-Radius Resector, Pre-Bent 15°, Convex
CAT #
EL9247U
4.20mm, Sterling, Shaver, Full-Radius Resector, Pre-Bent 15°, Concave
CAT #
EL9263A
4.20mm, Sterling, Shaver, Gator
CAT #
EL9299
4.20mm, Sterling, Shaver, Great White
CAT #
EL9299D
4.20mm, Sterling, Shaver, GreatWhite, Pre-Bent 15°, Convex
CAT #
EL9299U
4.20mm, Sterling, Shaver, Great White, Pre-Bent 15° Concave
CAT #
EL9356
4.20mm Merlin, Shaver, Cuda®, Bendable to 30°
CAT #
EL9405
Ultracut®, 4.2mm, Shaver Blade, Extended Length

Experience the Difference

Edge® Bipolar Arthroscopic RF System
button decoration
Arthroscopic Fluid Management Systems
button decoration
Looking Glass® 4K Integrated Visualization System
button decoration
Y-Knot® PRO Flex All-Suture Anchor
button decoration
